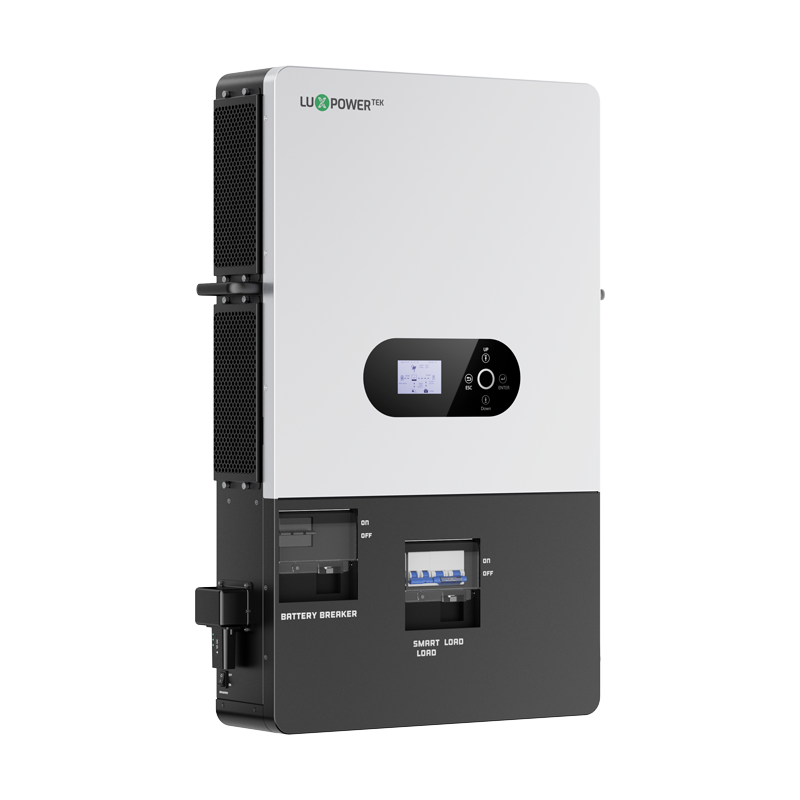

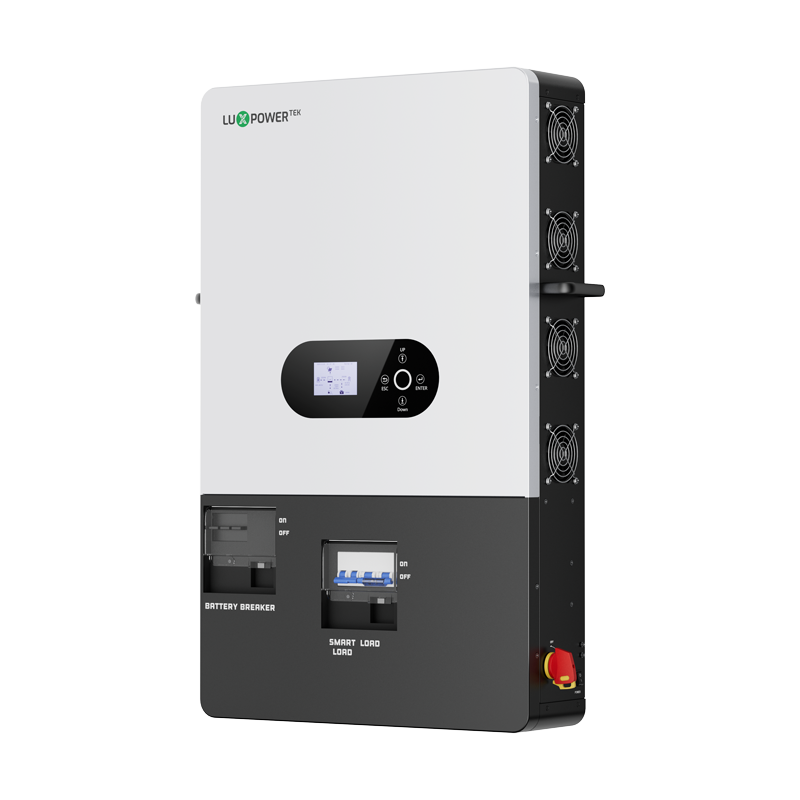

Luxpower Eco Hybrid Single-Phase SNA 12K

Its modular design supports up to 3 units in parallel, offering enhanced scalability to meet varying energy needs. The inclusion of a separate load port supports half-wave loads, showcasing its capability to handle diverse load requirements. The SNA 12K features a 100A pass through capability and a dedicated generator port, seamlessly integrating with existing on-grid systems.

CE

Available from warehouse

advantage

Product Features

PV or AC or generator wake up battery.

2 MPPTs with 4 strings, Max. 24kW PV input.

Max. charging and discharging current: 250A.

Dual AC output ports for multiple load connections.

Off-grid application for high demand with 12kW output power.

Why choose this product

Data

TECHNICAL DATA

INPUT (PV DC)

Battery

Grid

UPS

Gen

Efficiency

Protection

General

INPUT (PV DC)	SNA 12K
Max. PV array power (W)	24000 (12000/12000)
Reted PV input voltage (V)	320
Number of independent MPPT inputs	2/(2:2)
PV input voltage range (V)	100-480
MPPT voltage range (V)	120-385
Start-up voltage (V)	100
Max. PV input current per MPPT (A)	35/35
Max. PV short-circuit current input per MPPT (A)	44/44

Battery
Compatible battery type	Lithium-ion/Lead-Acid
Rated battery voltage (V)	48/51.2
Battery voltage range (V)	46.4-60/38.4-60
Max. charging / discharging current (A)	250
Max. charging / discharging power (W)	12000
Force wake up battery from PV and Grid function	YES

Grid
Rated AC voltage (V)	230
Acceptable Input Voltage Range (V)	90~280
Rated AC frequency (Hz)	60/50
Rated AC intput current (A)	100
Rated AC intput power (W)	24000
PF	0.99
THDI	<5%
Max. continuous AC passthrough current(A)	100

UPS
Rated output power (W)	12000
Rated output voltage (V)	230
Rated output current (A)	50
Rated output frequency (Hz)	50/60
Surge power, duration	2Pn, 5s
Switching time ( UPS )	<10ms@Single and Parallel
Wave form	Sine wave
THDV	3%

GEN
Acceptable input voltage range	230
Max. AC input voltage (V)	280
Max. AC input current (A)	63
Rated input frequency	50Hz/60Hz (Auto detection)
Transfer time	<10ms@Single; <20ms@Parallel
THDV	<3%
Overload protection	5s@§150% load /10s@110%~150% load

Efficiency
Max. efficiency	90.00%
Max. charging / discharging efficiency	90.00%
Max. MPPT efficiency	99.00%

Protection
PV reverse polarity protection(Y/N)	YES
Over current / voltage protection(Y/N)	YES
AC Short-circuit current protection(Y/N)	YES
Grid monitoring(Y/N)	YES
DC switch(Y/N)	YES
DC / AC Surge protection Type lll	YES
Battery reverse polarity protection(Y/N)	YES

General
Dimensions ( WHD mm )	530830150mm(17.7225.595.9inch)
Weight	40kg/88.2lbs
Ingress protection rating	IP20
Operating environment temperature range(°C)	0~45
Storage temperature range(°C)	-15~60
Relative humidity	5% ~ 95%
Display & Communication interface	LCD+RGB, RS485 / Wifi / CAN
Warranty	2 years
Cooling method	Smart cooling
Topology on AC / Battery side	Transformer-less / Transformer
Altitude (m)	<2000
Noise emission (typical)	<50dB
Standard & Certification	CE
