  • Luxpower Hybrid Series Single-Phase LXP-LB-EU 12K

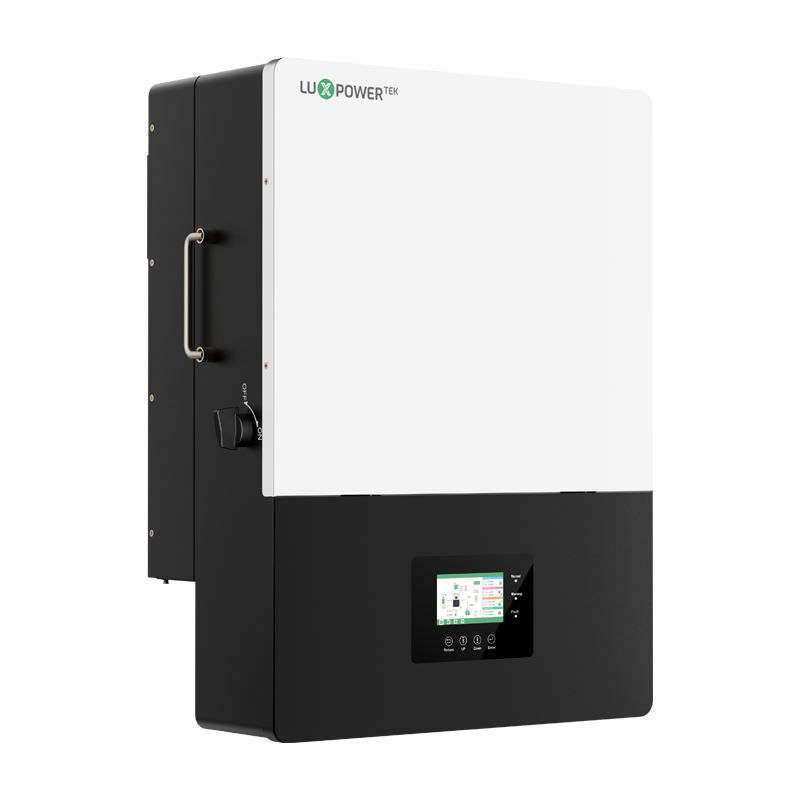

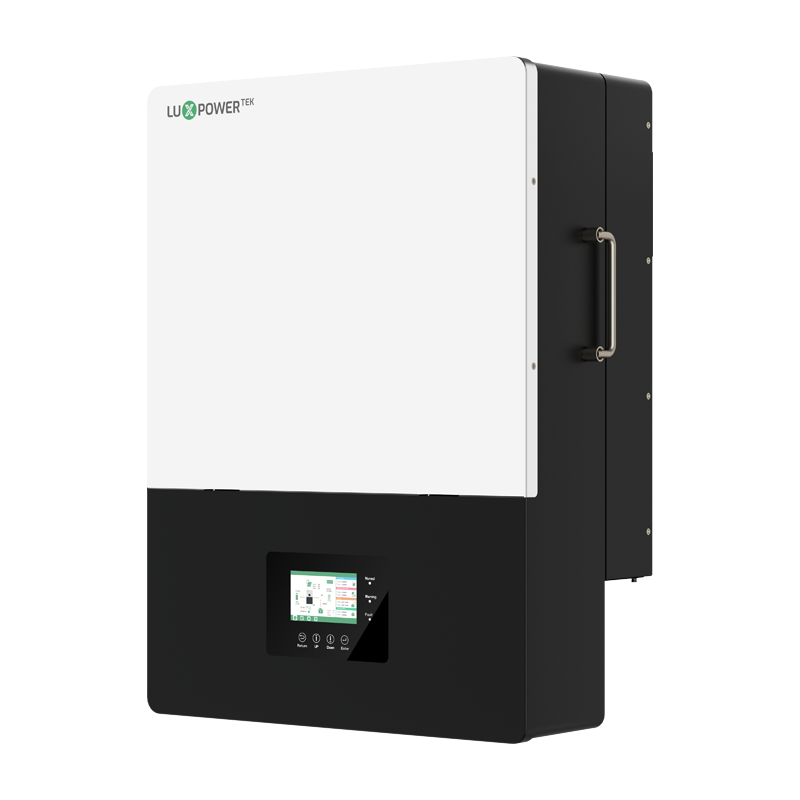

Luxpower Hybrid Series Single-Phase LXP-LB-EU 12K

A recently enhanced hybrid inverter solution, designed to meet diverse application scenarios and electricity demands, ensuring energy self-sufficiency.

EMC SANS 211:2010, CISPR 2015+A1:2016, IEC 61000-2-2-2012+A1:2017+A2:2018, Cape Town list, G99, G100, NRS 097-2-1:2017

Sign Up For Prices
Available from warehouse

advantage

Product Features

3 MPPTs, Max.18kW of PV input.

On / off grid seamless switching.

12kW UPS output for backup during power cuts.

Supports up to 10pcs in parallel for on / off grid.

Separate port for – generator or AC coupling or smart load connection.

Why choose this product

Data

TECHNICAL DATA

INPUT (PV DC)

Battery

Grid

UPS

Efficiency

Protection

General

INPUT (PV DC) LXP-LB-EU 12K
Max. PV array power(W) 18000
Rated PV input voltage(V) 360
Number of independent MPPT inputs 3/(2:1:1)
PV input voltage range(V) 100~600
MPPT voltage range(V) 120~500
Start-up voltage(V) 140
Max. PV input current per MPPT(A) 25/15/15
Max. PV short-circuit current input per MPPT(A) 31/19/19
Battery
Compatible battery type Lithium-ion/Lead-Acid
Rated battery voltage(V) 48
Battery voltage range(V) 40~60
Max. charge/discharge current(A) 250
Max. charge/discharge power(W) 12000
Force wake up battery from PV function(Y/N) YES
Grid
Rated AC voltage(V) 230
Rated AC frequency(Hz) 50/60
Rated AC output current(A) 50
Rated AC output power(W) 11500
Max. AC intput current(A) 200
PF 0.99 (Adjustable from 0.8 leading to 0.8 lagging)
THDI <3%
Max. continuous AC passthrough current(A) 200
UPS
Rated output power(W) 11500
Rated output voltage(V) 230
Rated output current(A) 50
Rated output frequency(Hz) 50/60
Surge power, duration 2Pn, 0.5s
Switching time 20ms
Wave form Sine wave
THDV 3%
Efficiency
MPPT efficiency 99.90%
Max. efficiency 97.50%
Max. charge efficiency 94.00%
Max. discharge efficiency 94.00%
Protection
PV reverse polarity protection YES
Over current/voltage protection YES
Anti-islanding protection YES
AC Short-circuit current protection YES
Leakage current protection YES
Ground fault monitoring YES
Grid monitoring YES
DC Switch YES
AC/DC Surge protection Type III YES
General
Dimensions(W*H*D) 490*670*265mm/19.3*26.3*10.4inch
Weight 50kg/110.2lbs
Ingress protection rating IP65
Relative humidity 0100%
Operating environment temperature range(°C) -25~60°C, ＞45°C Derating
Storage temperature range(°C) -2560
Display & Communication interface Touch color screen, RS485/Wi-Fi/CAN
Warranty 5 years
Cooling method Smart Cooling
Topology Transformer-less
Altitude <2000m
Noise emission(typical) <50dB
Standards & Certification EMC SANS 211:2010, CISPR 2015+A1:2016, IEC 61000-2-2-2012+A1:2017+A2:2018, Cape Town list, G99, G100, NRS 097-2-1:2017
