  • Luxpower AC Retrofit LXP 3600 ACS

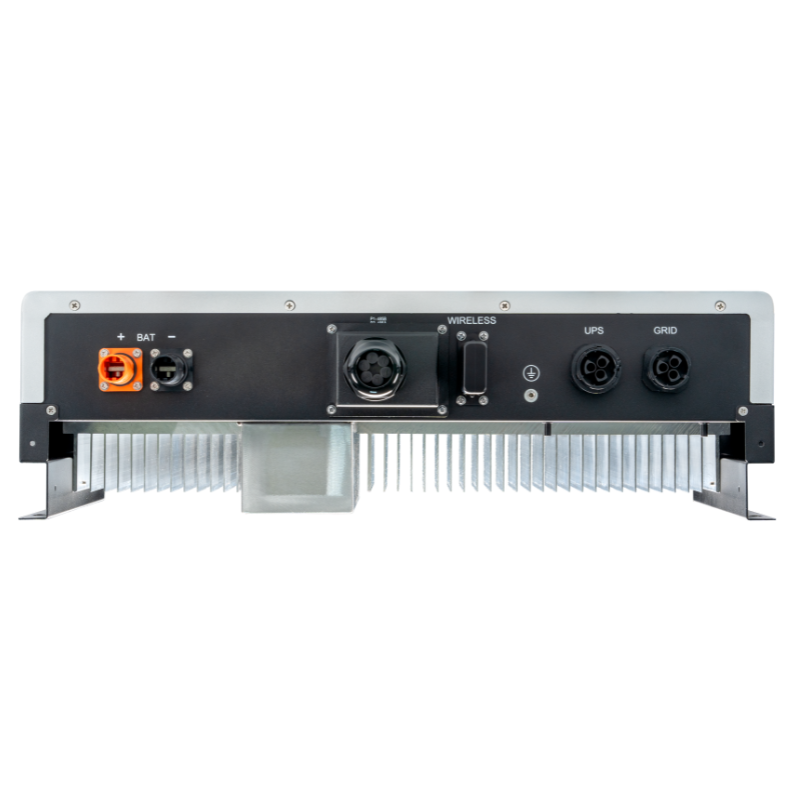

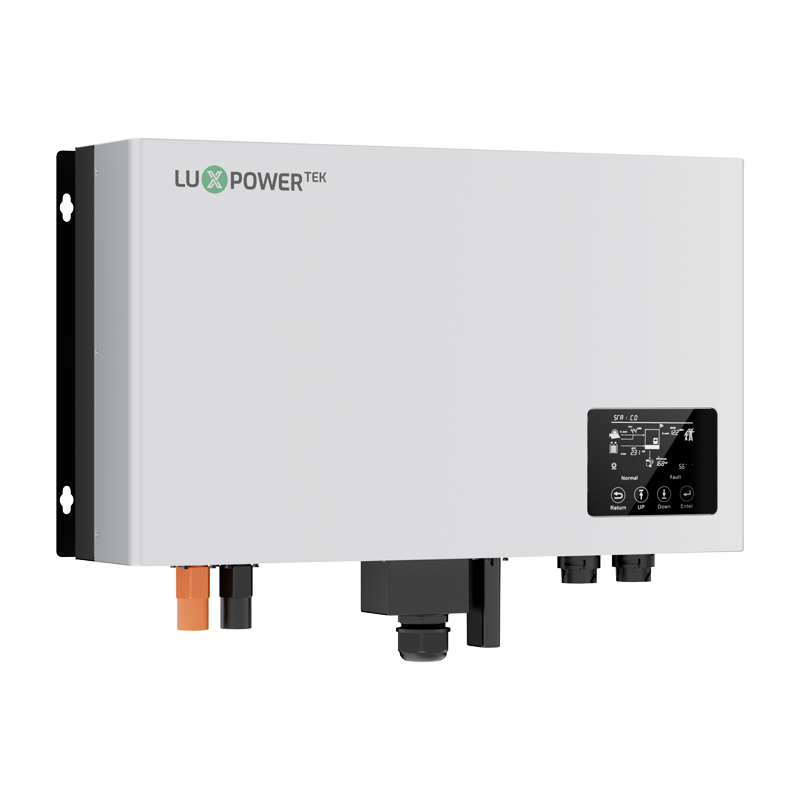

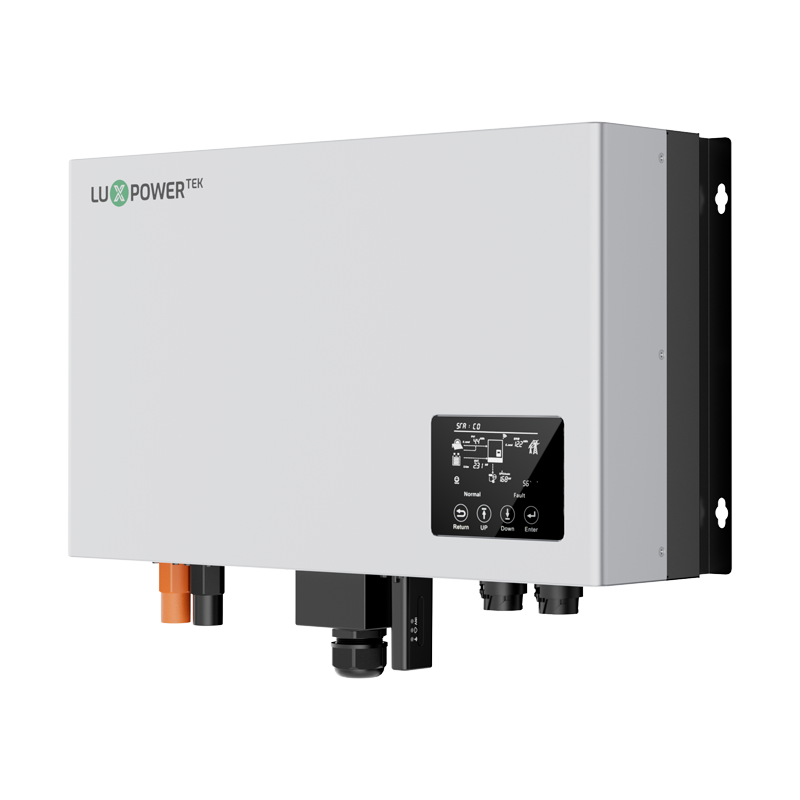

Luxpower AC Retrofit LXP 3600 ACS

Transform your on-grid system into efficient energy storage with this compact retrofit solution. Ideal for upgrading current on-grid setups, it facilitates seamless transformation.

IEC62109-1, IEC62040, EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011+ AC:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, VDE-AR-N 4105 EN50549-1, G98, G100

Available from warehouse

advantage

Product Features

Retrofit any on-grid / micro-grid system to energy storage system.

Battery charging / discharging current: 70A.

Octopus smart time of use and weather optimize.

On / off-grid seamless switching.

Support up to 8 pcs in parallel.

Separate EPS port for flexible load management.

ACS 3600

Why choose this product

Data

TECHNICAL DATA

Battery

Grid

UPS

Efficiency

Protection

General

Battery LXP 3600 ACS/LXP 3600 SQPOD
Compatible battery type Lithium-ion/Lead-Acid
Rated battery voltage(V) 48
Battery voltage range(V) 4060
Max. charge voltage(V) 60
Max. charge/discharge current(A) 70
Max. charge/discharge power(W) 3600
Force wake up battery from Grid fuction(Y/N) YES

Rated AC voltage(V) 230
Rated AC frequency(Hz) 50/60
Rated AC output current(A) 16
Rated AC output power(W) 3600
Max. AC intput current(A) 26
PF 0.99 (Adjustable from 0.8 leading to 0.8 lagging)
THDI <3%
Max. continuous AC passthrough current(A) 40
Rated output power(W) 3600
Rated output voltage(V) 230
Rated output current(A) 16
Rated output frequency(Hz) 50/60
peak power, duration 4500W, 30s
Switching time 20ms
Wave form Sine wave
THDV <3%
Parallel capacity 6
Max. efficiency 97.30%
Max. charge efficiency 94.50%
Max. discharge efficiency 94.50%
Over current/voltage protection YES
Anti-islanding protection YES
AC Short-circuit current protection YES
Grid monitoring YES
AC Surge protection Type III YES
Dimensions(W*H*D) 650*440*220mm/25.6*17.3*8.6inch
Weight 15.6kg/34.4lbs
Ingress protection rating IP65
Operating environment temperature range(°C) -2560
Storage temperature range(°C) -4065
Relative humidity 095%
Display & Communication interface LCD, RS485/Wi-Fi/CAN
Warranty 5 years
Cooling method Natural Cooling
Topology Transformer-less
Altitude 2000m
Noise emission(Typical) <25dB
AC connector YES
Standards & Certification IEC62109-1, IEC62040, EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011+ AC:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, VDE-AR-N 4105, EN50549-1, G98, G100
