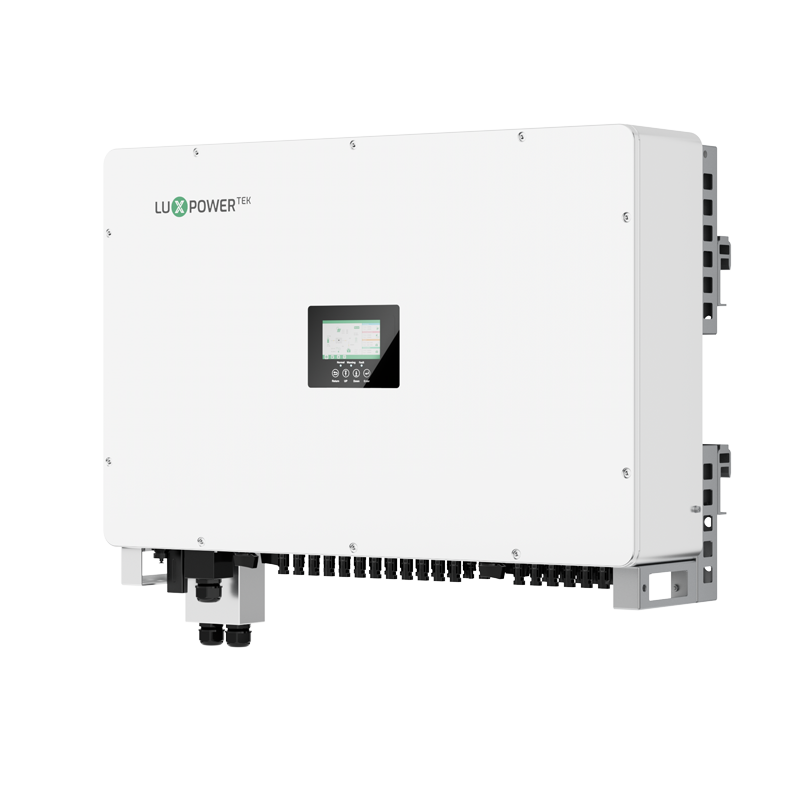

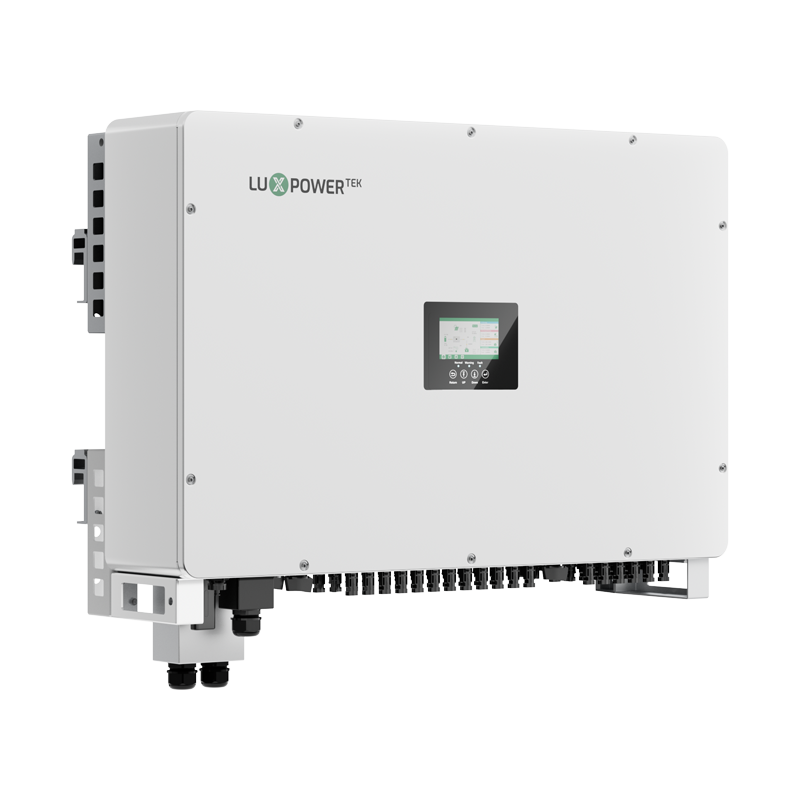

Luxpower DC Retrofit LSP 100K

Supporting up to 200 kW of PV input and a maximum PV output of 100kW, this inverter is built on DC-coupling technology, delivering solar electrical energy to the energy storage system in direct current form. By connecting directly to existing grid-tied inverters, linking solar panels with batteries, and transforming them into an energy storage system, it enables seamless retrofitting for commercial and industrial applications. This not only reduces installation costs but also enhances solar energy capture efficiency.

EN 62109-1 / -2, IEC 62109-1 / -2

Sign Up For Prices
Available from warehouse

advantage

Product Features

Max. 200kW PV input and 100kW PV output.

Retrofit on-grid system to hybrid system (energy storage).

DC-coupling, 24 MPPT inputs and 12 MPPT outputs.

24/7 real-time monitoring via free LUX APP and WEB.

Advanced power management logic.

Colorful touch LCD, IP65 for indoor / outdoor installation.

Why choose this product

Data

TECHNICAL DATA

Input (PV DC)

Battery

PV Output

Protection

General

INPUT (PV DC) LSP 100K
Max. input power(kW) 200
Max. input voltage(V) 1100
Rated PV input voltage(V) 630
MPPT voltage range(V) 300~1000
Start-up voltage(V) 330
Max. short-circuit per MPPT(A) 33
Max. current per MPPT input(A) 26
Number of MPPT inputs 12
Number of input strings 24
Battery
Type Lithium-ion/Lead-acid
Max. charge/discharge power(kW) 100
Voltage range(V) 300~700
Max. charge/discharge current(A) 200
Max. charge/discharge e†ciency 98.10%
PV output
DC-DC output rated power(kW) 100
Normal output voltage(V) 630
Output voltage range(V) 500~1000
Max. output current(A) 20
Output strings 12
Output trackers 12
Protection
DC reverse-polarity protection Yes
DC surge arrester Type II
General
Dimensions(W*H*D) 1015*680*310mm/39.9*26.8*12inch
Weight(with mounting plate) 120kg/264.5lbs
Protection degree rating IP65
Topology Transformer-less
Cooling method Natural Cooling
Relative humidity 0%~100%
Operating environment temperature range(°C) -25~60

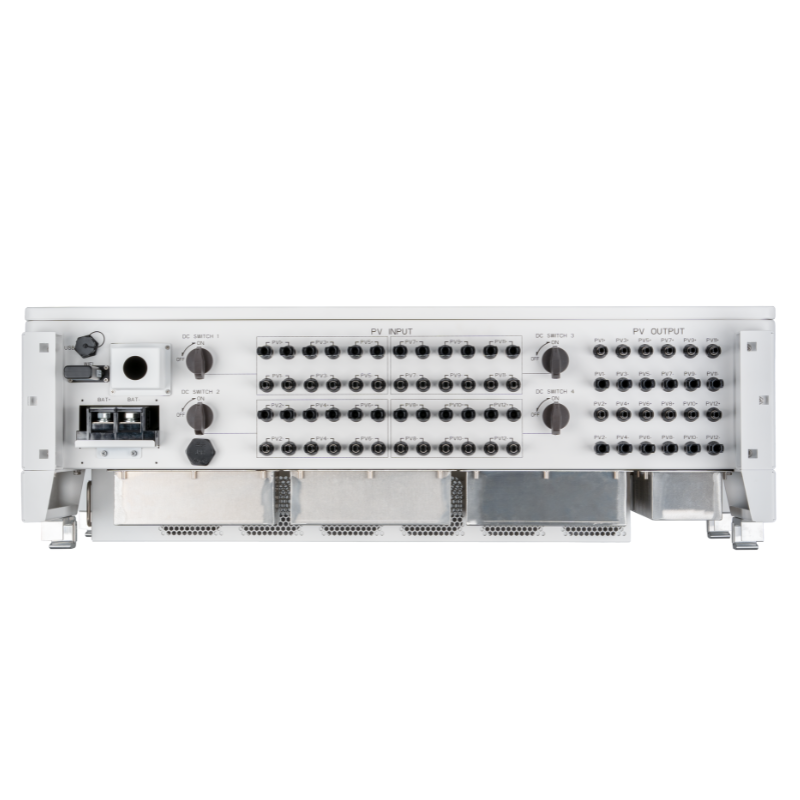

Connector(PV input and Output) MC4
Battery connector Screw
Altitude <4000m
Warranty 5 years
Display Touch color screen, LED+LCD
Communication interface RS485/CAN/Wi-Fi
Standards & Certifications EN 62109-1 / -2, IEC 62109-1 / -2
