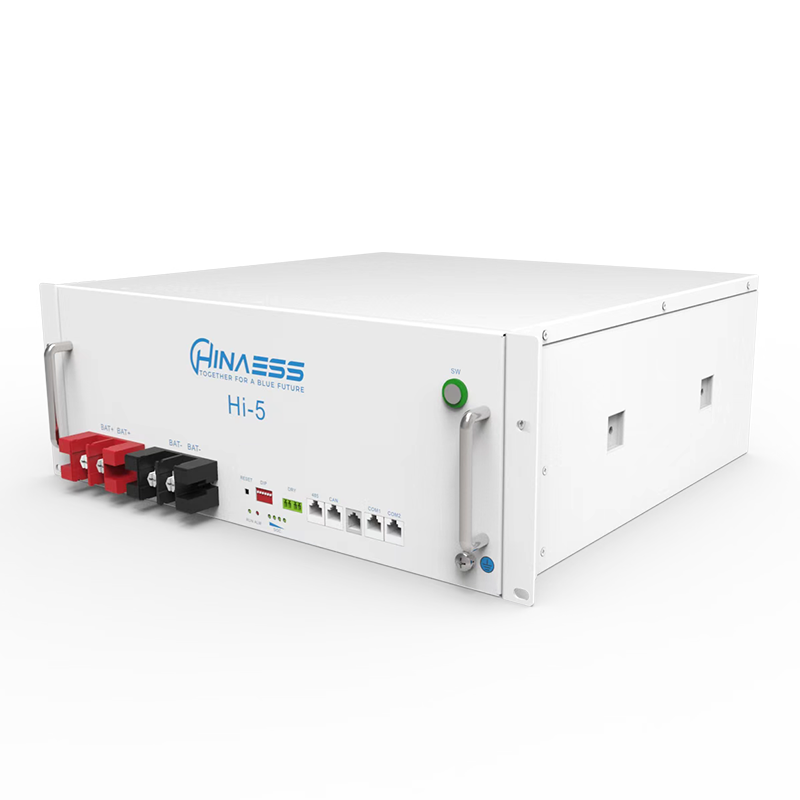

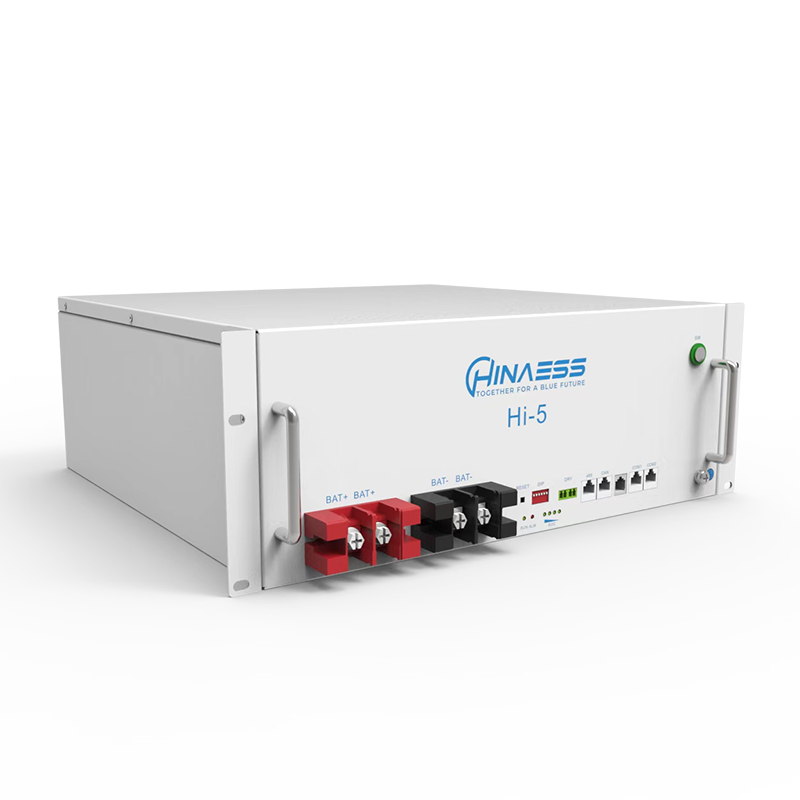

Model | Hi-5 |
Cell Type | LFP |
Rated Power | 5.12kWh |
Rated Capacity | 100Ah |
Rated Voltage | 51.2V |
Charge Voltage | 57.2V |
Max Charge/Discharge Current | 100A |
Parallel | Up to 32 units parallelable w/o extra device needed, slave battery drops offline or come back alive does not affect system running |
Discharge Peak Current | 105A / 15s, 120A / 0.5s |
IP Level | IP20 |
Dimension | 481*452.6*165mm |
Weight | 50Kg |
Communication | CAN/RS485 |
Compatible Inverter | Victron, Luxpower, Deye, Voltronic, SMA,Goodwe, Growatt, Sofar, Solark, SRNE, Must |
Humidity | 5%~85% RH (No condensation) |
Work Temperature | -20 ℃ ~ +55 ℃ |
Storage Temperature | -10 ℃ ~ +35 ℃ |
Remote Maintenance | Flexible remote upgrade, Original firmware backup to prevent upgrade failure |
Warranty * | 10 year, 6000 cycles |
Protection | Over charge/discharge/current/voltage/temperature protection Short circuit protection, Reverse connection protection Charge balance, Low SOC protection |
Certification | CE UN38.3 IEC62619 |
